Air Distribution System: Everything You Need To Know

The technique used for air distribution system design to disperse hotness and cool relies upon the functioning liquid: water, refrigerant, or air. Outside air should be conveyed by pipes or coordinated through the structure volume itself.

Pipes that utilize air as a functioning liquid should be huge since air doesn’t store heat successfully. Water is a lot denser and stores significantly more hotness.

For instance, a 1-inch distance across a pipe containing boiling water can convey more energy than air in an 8-inch x 12-inch pipe. The functioning liquid might be moved by siphons, fans, gravity, or normal convection.

Understanding an air distribution system is essential for good HVAC Design in California!

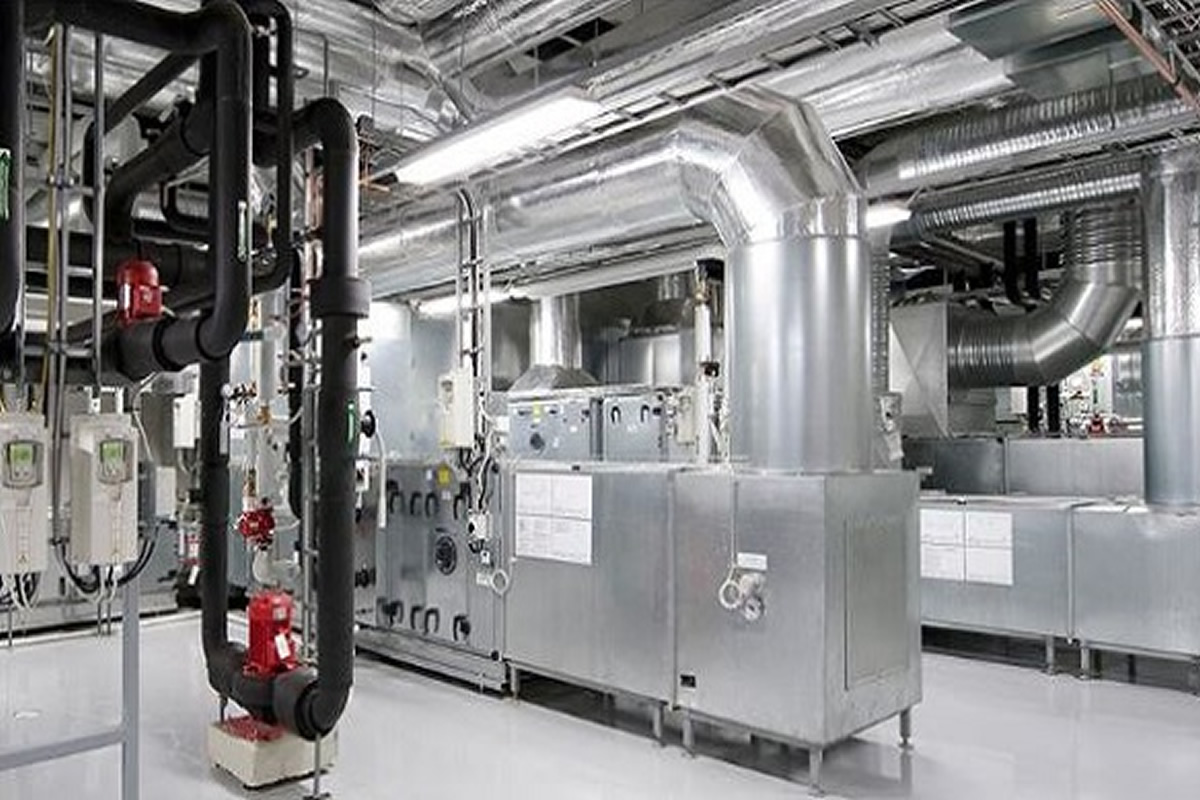

Air Distribution Systems: Air Handling Units

Focal warming and cooling frameworks utilize the air-taking care of units (Ahu’s) and ventilation work to circulate adapted air to each niche and corner of the structure.

An air-taking care unit (AHU) is a gadget used to condition, flow, and change the attributes of air through an assortment of medicines like filtration, warming, cooling, humidifying, and dehumidification. The AHU keeps up with the ideal proportion of outside air and exhaust air naturally on detecting higher CO2 fixation in the indoor space. It additionally achieves the adjusting of supply and returns air while keeping up with the structure compression for good air distribution system design.

Standard air-taking care of the unit is based around a mechanical system design bundled unit, which contains a blower, warming or cooling components, channel racks, sound attenuators, and dampers. Uniquely assembled air dealing with units joins different additional items, for example, heat recuperation gadgets, economizers, smoke exhaust, and so forth to improve security and energy productivity.

Construction of Air Handling Unit

The development and the actual area of the fair dealing for air distribution system design with the unit are vital in the calculated phases of the engineering plan. Any other way it will be amazingly hard to build up the unit size and mechanical room region.

A measured air dealing with unit (AHU) gathering comprises of different areas as shown beneath:

Fan segment – The fan segment contains an outward fan to disperse air to the different zones of the structure. The common sorts of fan accessible are Backward Inclined, Backward Curved, Forward Curved, and Airfoil. The choice of the fan will rely upon the air volume and the static tension expected of the pipe framework.

Cooling segment – Cooling area contains the cooling loop: DX or chilled water type. Both these curls are created of copper cylinders and aluminum balances. The thing that matters is that the DX loop has a merchant at the bay and the chilled water curl is associated with the header. The loops are accessible in various columns and blade dividing mixes in mechanical system design.

Humidification area – The humidification segment contains spouts, shower headers, or dish warmers. During winter, the stickiness level of the air can be low causing distress and friction-based electricity concerns. The dampness of the air can be expanded by adding:

●       Atomized water

●       water fume provided by the steam heater

●       water fume provided by little uncommon steam-creating gadget

Reheat segment – The reheat segment contains a warming loop for relieving the low temperatures caused because of dehumidification. This is significant when stickiness control outweighs the temperature control of the cooling loop.

Filters segment – The filter area contains the channels to catch the residue and different particulates. There are various kinds of channels accessible. High proficiency channels (those with a residue spot productivity rating of 85% or higher) can eliminate dust, shape spores, microorganisms, or different cleans, which might create some issues for individuals.

Mixing Box – The mixing box contains dampers to keep up with the right extent of supply air, return air, and outside air.

Heat recuperation – Regarding heat recuperation, frameworks utilized in AHUs are cross-stream heat exchangers (viability half) and rotating wheels (60-70%). In more modest AHU sizes, exhaust air heat siphons can be utilized rather than the hotness recuperation gadget.

What Are the Essential Design Configurations?

In the Draw-Through type, the fan gets the air through the channels and cooling curl before releasing it to the ventilation work. In this setup, the part before the fan has negative tension. The plan can be vertical or flat.

In the Blow-Through type, the fan blows the air through the blending box, channels, and cooling curl before releasing the ventilation work. In this setup, the segment after the fan has positive tension.

Air can be appropriated and adapted by an assortment of plans. Three normal frameworks are:

●       All-air frameworks

●       Air-and-water frameworks

●       All-water frameworks
