At InnoDez, we take pride in delivering innovative MEP design and engineering services that cater to the unique demands of residential developments. For this project, we provided comprehensive MEP and fire sprinkler system design for 5 two-story townhomes in Dallas, Texas. Our goal was to ensure these townhomes met all local building codes while maximizing energy efficiency, safety, and comfort for future residents.

Our MEP Engineering Approach:

This project required a tailored approach to seamlessly integrate the mechanical, electrical, plumbing, and fire protection systems. We collaborated closely with the client and the architectural team to create designs that complement the overall layout and functionality of the townhomes.

• Mechanical Systems: Designed efficient HVAC systems to provide consistent indoor air quality and climate control across all living spaces.
• Electrical Systems: Developed reliable electrical layouts to support modern amenities, lighting, and appliances while ensuring compliance with safety standards.
• Plumbing Systems: Engineered advanced plumbing solutions that ensure optimal water pressure, efficient waste management, and reliable hot water supply.
• Fire Sprinkler Systems: Integrated state-of-the-art fire protection systems that meet strict safety regulations, safeguarding residents and property.

HVAC Systems for Comfort and Efficiency:

For these two-story townhomes, we prioritized energy-efficient HVAC designs that ensure optimal temperature control across both floors. By leveraging the latest technologies, we created systems that reduce energy consumption while maintaining year-round comfort for residents.

Electrical Systems for Modern Living:

Our team designed electrical systems that cater to the lifestyle needs of today’s homeowners. From strategically placed outlets to smart home compatibility, our electrical solutions enhance convenience and safety.

Plumbing and Fire Safety Solutions:

Reliable plumbing and fire safety are essential for residential developments. We designed durable plumbing systems for efficient water use and implemented fire sprinkler systems to provide robust protection in the event of emergencies.

Challenges and Solutions:

• Space Constraints: Designing systems that maximize functionality without compromising the limited space within townhomes.
• Energy Efficiency: Incorporating sustainable technologies to reduce operational costs for homeowners.
• Regulatory Compliance: Ensuring designs adhered to all local building codes and safety standards.

Our expertise in residential MEP engineering allowed us to address these challenges effectively, providing innovative solutions tailored to the project’s unique requirements.

Sustainability and Energy Efficiency:

In line with modern construction practices, we incorporated energy-efficient solutions, such as LED lighting, low-flow plumbing fixtures, and high-performance HVAC systems, to enhance sustainability while lowering utility costs for future residents.

Conclusion:

InnoDez’s commitment to excellence in MEP design ensured the successful completion of this project. Our comprehensive approach to engineering, combined with a focus on safety and efficiency, delivered a design that enhances the living experience in these Dallas townhomes.

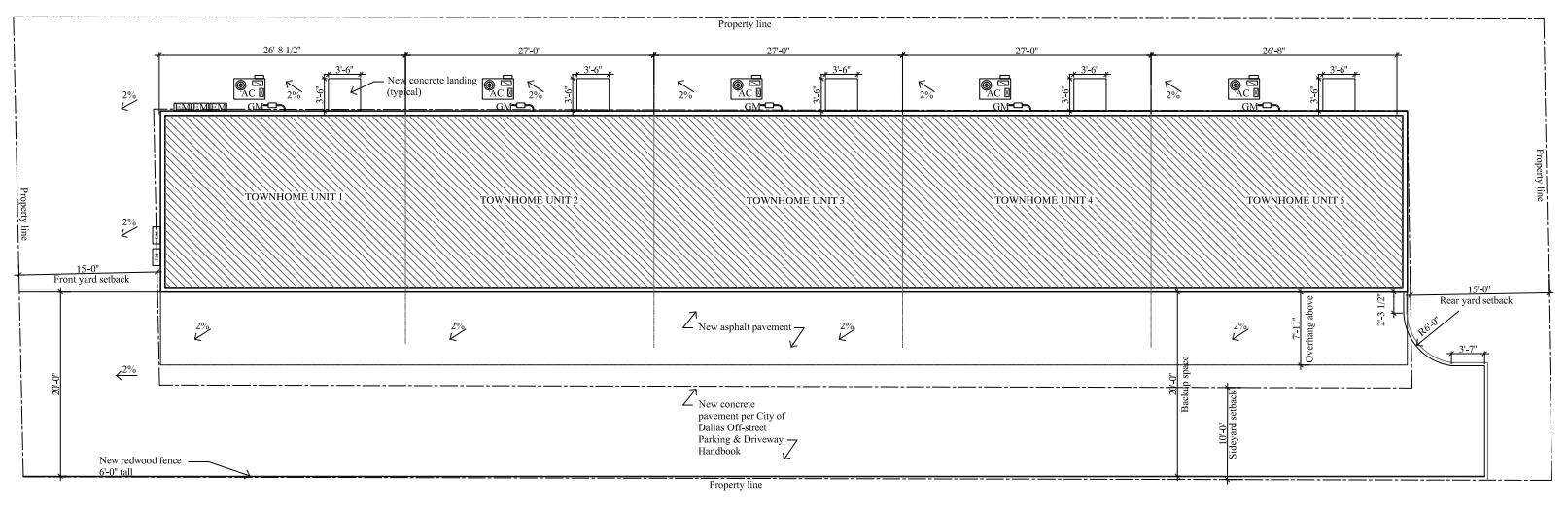

InnoDez provided MEP Design and Fire Sprinkler System Design for five 2-story townhomes in  2319 Shea Rd, Dallas, TX 75235.

It consists of 5 ADUs two stories each.

For the Mechanical:

• Manual J has been done on Wrighsoft Software which is approved by ACCA and IRC.
• One Gas Furnace was selected for each unit to cover both main and second floor by the means of 10 inch ceiling ducting between the truss.
• Datasheet were provided and equipment schedule along with exhaust fan for each toilet.

For the Plumbing:

• Each Home has been provided with one water meter and one gas meter.
• Water Heater was selected to be Gas Tankless with a capacity of 200 MBH.
• Fire Sprinkler system has been designed based on NFPA 13-D and Fire Elite Hydraulic Calculation.
• Isometric drawing for Gas has been done and pipe size has been selected on the longest run based on the IFC.

For the Electrical:

• Lighting fixtures have been selected to match with the reflected ceiling.
• Receptacle has been provided based on NEC2017 configuration and minimum distance between the receptacles.
• Panel board has been selected for each house with a 100 A MCB, 208/120, 3 Phase system voltage.
