Project Overview

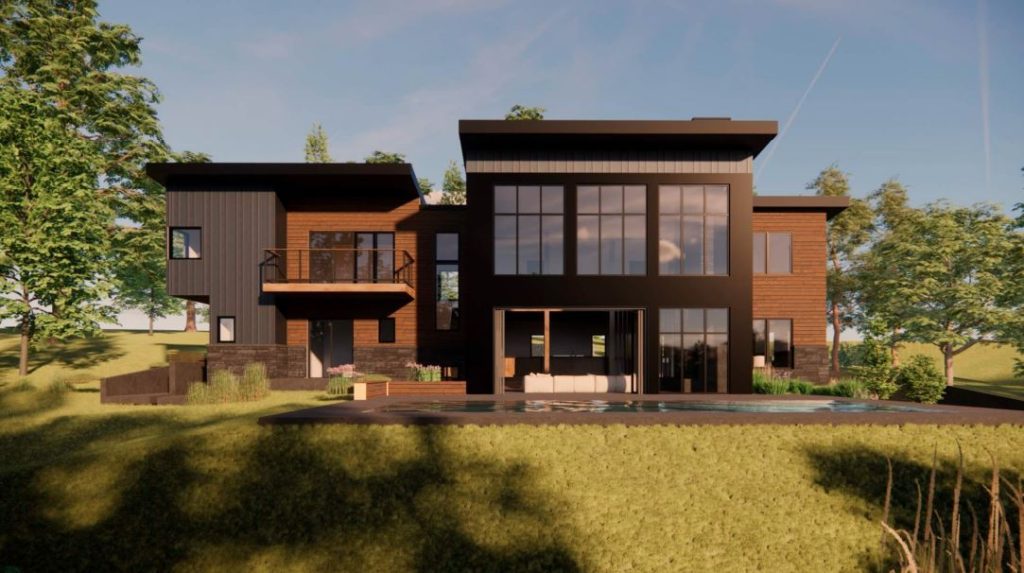

InnoDez provided structural engineering services for a single-family home in Westmoreland County, Pennsylvania. The project involved designing the structural components of the house, including the foundation, walls, floors, and roof.

Location: 460 Dick Station Rd – Sewickley Township, Westmoreland County, PA

Unique Design Challenges

• Site Conditions: The absence of a geotechnical report meant that InnoDez had to carefully assess the site conditions and make assumptions based on local geology and soil types.

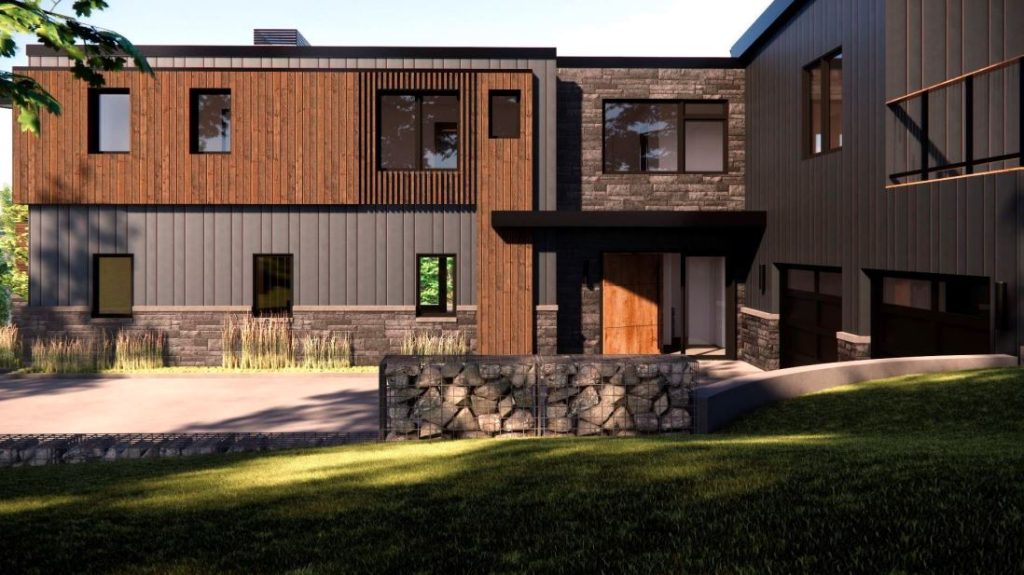

• Retaining Wall: The presence of a retaining wall on the rear driveway presented a challenge in terms of structural stability and drainage.
• Loft Area: The loft area required additional structural support to ensure the building’s structural integrity.

InnoDez’s Innovative Solutions

• Structural System Selection: InnoDez selected open web joists for the floors and trusses, providing a cost-effective and efficient structural system.

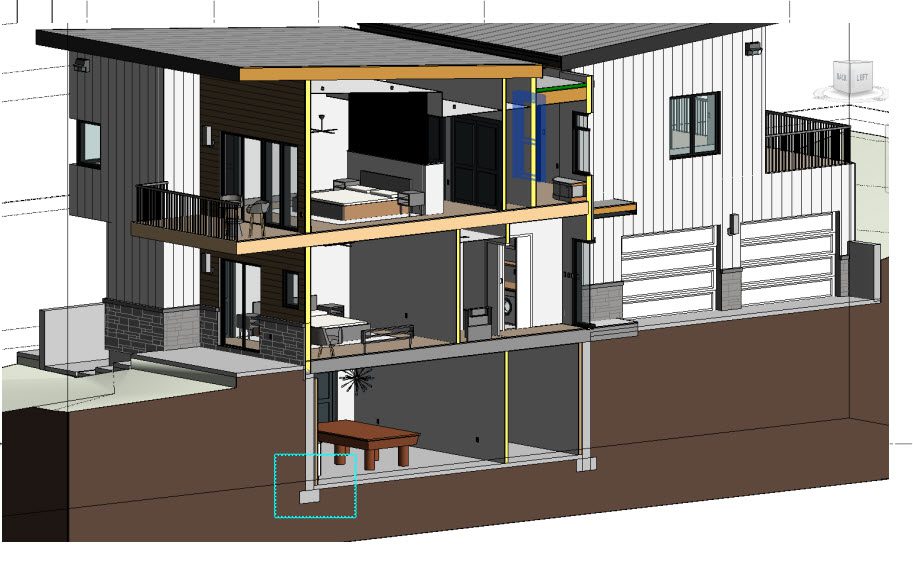

• Foundation Design: A poured concrete foundation with stem walls was chosen to provide a solid and stable base for the building.
• Structural Support: To support the loft area and roof, InnoDez incorporated columns into the design. These columns provided additional vertical support and helped to distribute the load.
• Retaining Wall Mitigation: InnoDez worked closely with the site grading contractor to minimize the need for a large retaining wall. By carefully planning the site grading, the height of the retaining wall could be reduced, reducing the overall structural load.

Project Outcomes

InnoDez’s structural design for the single-family home in Westmoreland County provided a solid and stable foundation for the building. The use of open web joists and trusses, combined with the strategic placement of columns, ensured the structural integrity of the loft area and roof.

By working with the site grading contractor to minimize the impact of the retaining wall, InnoDez helped to reduce the overall structural load and potential costs.
